0–5 Gear Levels
Speed From 0 to 25 km/h
PIXAR M9 Retro Dual-Battery Fat Tire E-Bike – 250W Motor, Up to 240km Range, 25km/h
Guaranteed Safe Checkout
Max 350kg
Weight Capacity 350 kg
Range 240 km
Single Charge Range
Motor 250W
Rear-Wheel Drive Motor
2 × 48V17.5Ah
Battery Capacity
60 N.m
Max 50° Gradient

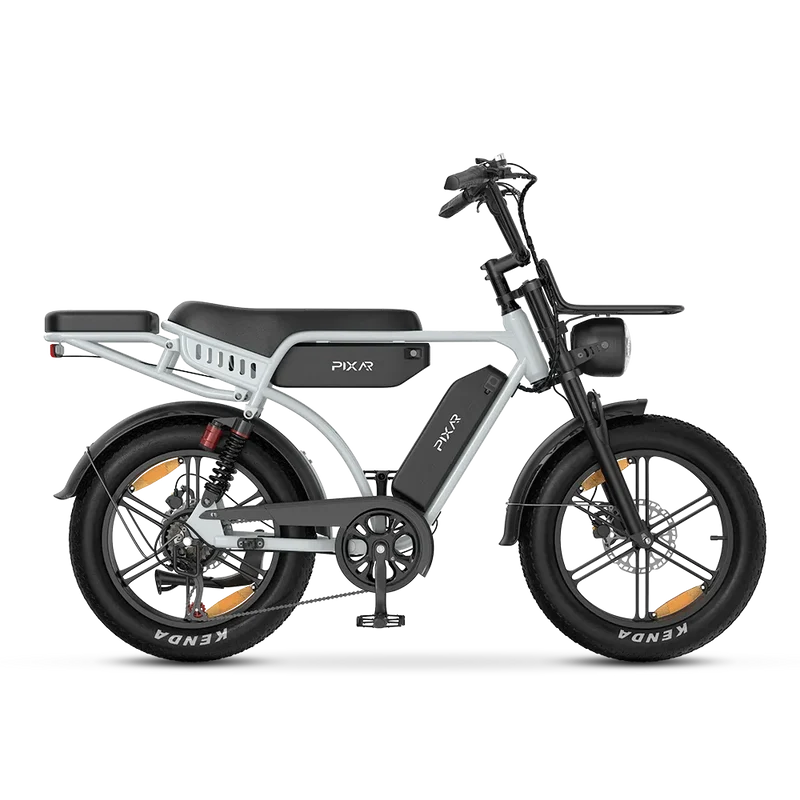

PIXAR M9 Retro Dual-Battery Fat Tire E-Bike – 250W Motor, Up to 240km Range, 25km/h
PIXAR M9
PIXAR M9 Specifications
Explore the bike, its electronic controls, riding modes and complete dimensions.
250WMotor output
110–130 kmPublished range*
60 NmMotor torque
1,680WhDual-battery capacity
Technical Data
- Published range
- 110–130 km*
- Maximum assisted speed
- 25 km/h
- Published nominal dimensions
- 170 × 68 × 113 cm
- Maximum payload
- 120 kg
- E-bike net weight
- 49.5 kg
- Packaged gross weight
- 58.6 kg
- Shipping box dimensions
- 139 × 27 × 87.5 cm
- Motor torque
- 60 Nm
- Battery
- 2 removable 48V 17.5Ah batteries (35Ah and 1,680Wh total)
- Charging time
- Approximately 7.5 hours per battery; two batteries included
- Battery weight
- 2 × 5.5 kg
- Wheel and tire
- Kenda 20 × 4 in fat tires; rear wheel with integrated hub motor
- Water resistance
- IP65
- Recommended rider height
- 160–200 cm
*Published range varies with assistance level, rider weight, terrain, weather, tire pressure, temperature and riding style.
Frame
- Frame style
- Retro moped-style full-suspension frame
- Frame material
- High-quality steel alloy

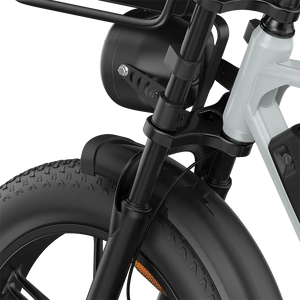

- Front fork
- Dual-crown suspension fork
- Suspension travel
- 100 mm
- Fork overall length
- 630 mm
- Rear suspension
- Dual rear spring shock absorbers
- Handlebar
- 68 cm wide, 120 cm maximum height
- Pedals
- 10 × 9 cm, with reflectors
- Chain
- 1/2 × 3/32 × 118L
- Crank arms
- 180 mm
- Chainring
- 48T
Motor & Controls
- Motor
- 48V 250W high-speed brushless rear-hub motor
- Motor output
- 250W rated
- Pedal assist
- 5 levels (PAS 1–5)
- Sensor
- Speed sensor
- Display
- Multifunctional LCD display with NFC and USB Type-C charging port
- Unlocking
- NFC tap-to-unlock
- Alarm system
- Integrated alarm with keys included
- Freewheel
- Shimano 7-speed indexed, 14–28T
- Charger
- 54.6V 2A charger
- Brake motor cut-off
- Integrated into both brake levers
- Throttle
- Included and limited to 6 km/h; permitted use depends on local regulations
RIDER INTERFACE
Electronic Control Configuration
Choose a control on the image or in the selector to explore how it works.
0108
Multifunction LCD display
View riding data, unlock the bike by NFC and charge a compatible device through the USB Type-C port.
Integrated bell
Give pedestrians and other riders a clear audible warning without leaving the handlebar.
Rear brake lever
Hydraulic disc brake control with an integrated motor cut-off for confident stopping.
Multifunction control pad
Control assistance, lighting, left and right turn signals, boost mode and power.
Anti-slip ergonomic grips
A textured surface keeps your hold comfortable and secure in changing conditions.
Shimano 7-speed shifter
Quick, familiar mechanical gear changes help you match cadence to the route.
Front brake lever
Hydraulic disc braking with an integrated motor cut-off for balanced control.
Included 6 km/h throttle
The throttle is included and limited to 6 km/h. Installation and permitted use depend on local regulations.
FIND YOUR PACE
Pedal Assist Levels
Choose one of the five available pedal-assist levels.
ACTIVE ASSISTANCEPAS 1
ASSISTED SPEED10 km/h
REFERENCE RANGE240 km
Reference results were obtained with an 80 kg rider on a flat road at approximately 33°C. Actual range varies with terrain, weather, rider weight, tire pressure, assistance level and riding style.
Components
- Rims
- Aluminium, 20 × 4 in, 13G × 36H
- Spokes
- 12G × 212 mm, EN15194 compliant
- Tires
- Kenda 20 × 4 in fat tires; rear wheel with integrated hub motor
- Recommended tire pressure
- 45 psi
- Inner tubes
- 20 × 4 in, 35 mm valve
- Brake levers
- Aluminium, with motor cut-off
- Brakes
- Front and rear hydraulic disc brakes
- Brake rotors
- 180 mm
- Drivetrain
- Shimano 7-speed
- Kickstand
- Heavy-duty aluminium kickstand
- Lighting
- Front and rear lights with turn signals
- Seat
- Extended two-person saddle with passenger footrests
- Fenders
- Front and rear fenders
- Rear rack
- Rear rack
- Chain guard
- Full chain guard
Passenger use is subject to local regulations and the 120 kg maximum total payload.
Geometry
49.5 kgNet weight
160–200 cmRider height
120 kgMaximum payload
168 cmMeasured overall length
| Code | Measurement | Value |
|---|---|---|
| A | Handlebar height | 120 cm |
| B | Overall length | 168 cm |
| C | Wheel radius | 28 cm |
| D | Frame height | 78 cm |
| E | Wheelbase | 110 cm |
| F | Seat height | 84 cm |
| G | Head tube length | 14 cm |
| H | Head tube angle | 70° |
| I | Rear center | 45 cm |
| J | Handlebar width | 68 cm |
Geometry values follow the published manufacturer diagram and may be rounded. Nominal product dimensions and diagram measurements can differ slightly because they use different measurement points.
What’s in the Box?
- Battery×2
- User manual×1
- Pedals×2
- Front wheel×1
- Front bracket×1
- Tool kit×1
- Keys×4
- Charger×1
