PIXAR Ride Specs
PIXAR Ride
PIXAR Ride
Specifications
Explore the easy-access steel-alloy frame, 20 × 4-inch fat tires, electrical system, riding controls and practical equipment.

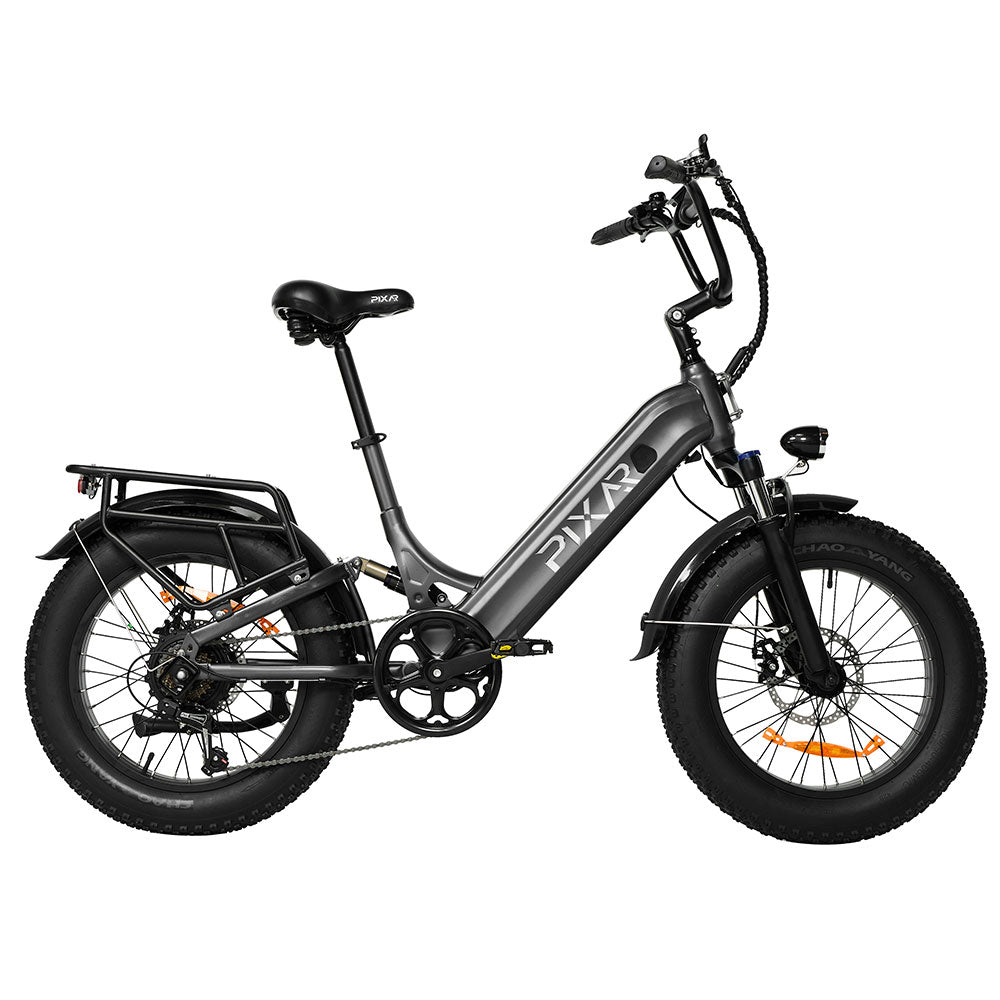

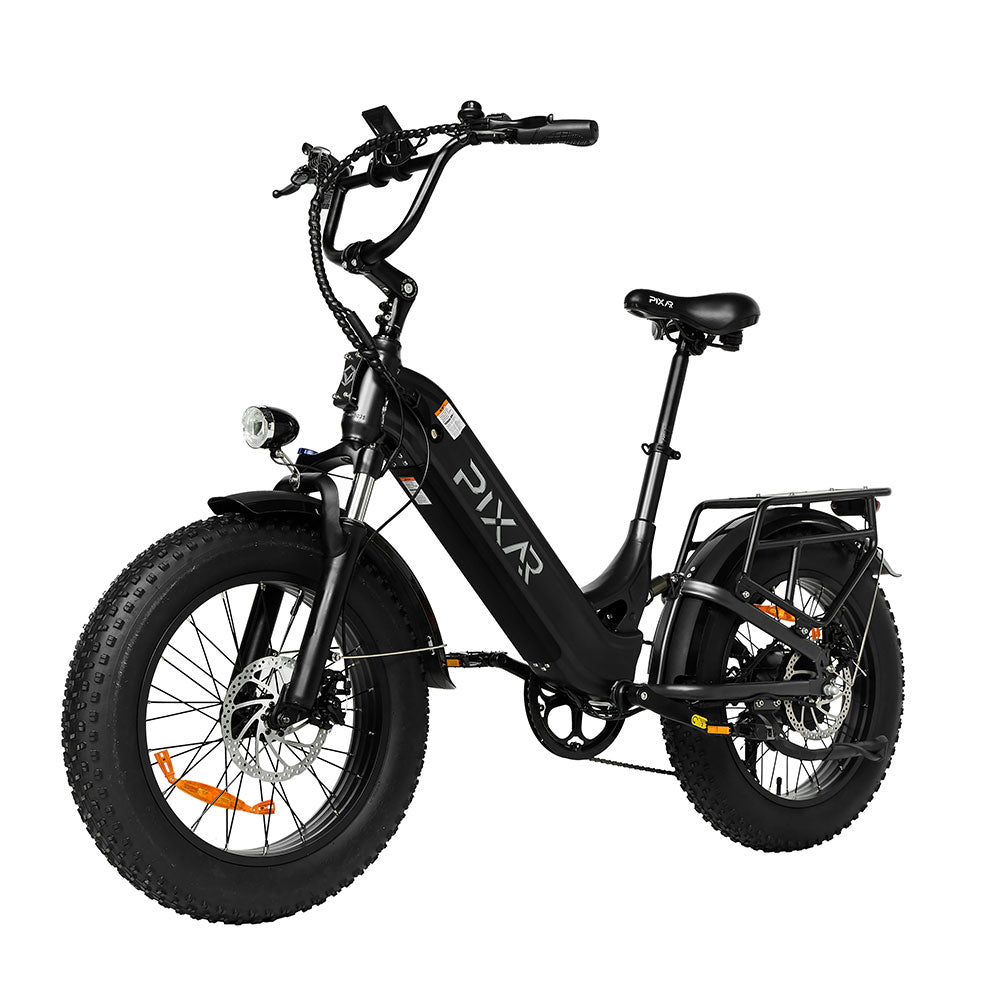

Step-through steel-alloy frame
20 × 4 in Chaoyang fat tires
48 V electrical system
Product overview
Two fixed views
At a glance
Technical Data
Consolidated customer-facing specifications for the European PIXAR Ride configuration.
ModelPIXAR Ride
Bike typeStep-through fat-tire electric bike
FrameSteel alloy
Wheel and tire20 × 4 in Chaoyang fat tire
Motor48 V brushless rear-hub motor, 250 W continuous rated output
Battery48 V 10.4 Ah EVE / 499.2 Wh
Estimated assisted range40–60 km*
Assistance cut-off25 km/h
Pedal assist5 levels (PAS 1–5)
SensorSpeed sensor
DrivetrainShimano 7-speed
BrakesFront and rear mechanical disc brakes
Charger54.6 V / 2 A
Charging timeApprox. 5.2 hours†
Water resistanceIP54-rated
Maximum total payload120 kg‡

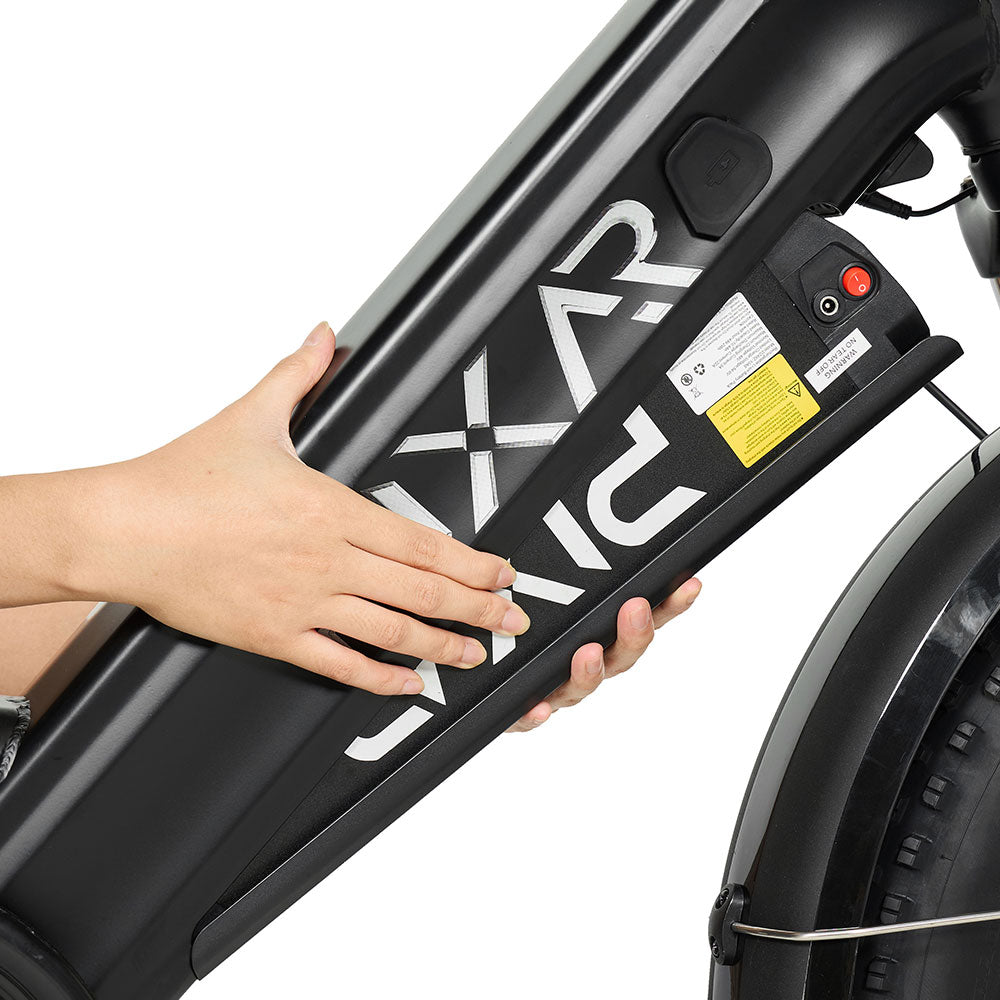

Removable power
Battery & Range
The 48 V EVE battery can be removed for convenient charging and secured to the frame with its lock.
Electrical-system voltage for the current model.
Nominal energy is calculated from voltage × amp-hours.
Actual distance varies with load, assistance, terrain and weather.
Supplied charging figure: approximately 5.2 hours.†
Easy-access platform
Frame & Ride
A steel-alloy step-through platform with wide tires, front suspension and an upright riding position.
Low-step access supports easier mounting and dismounting.

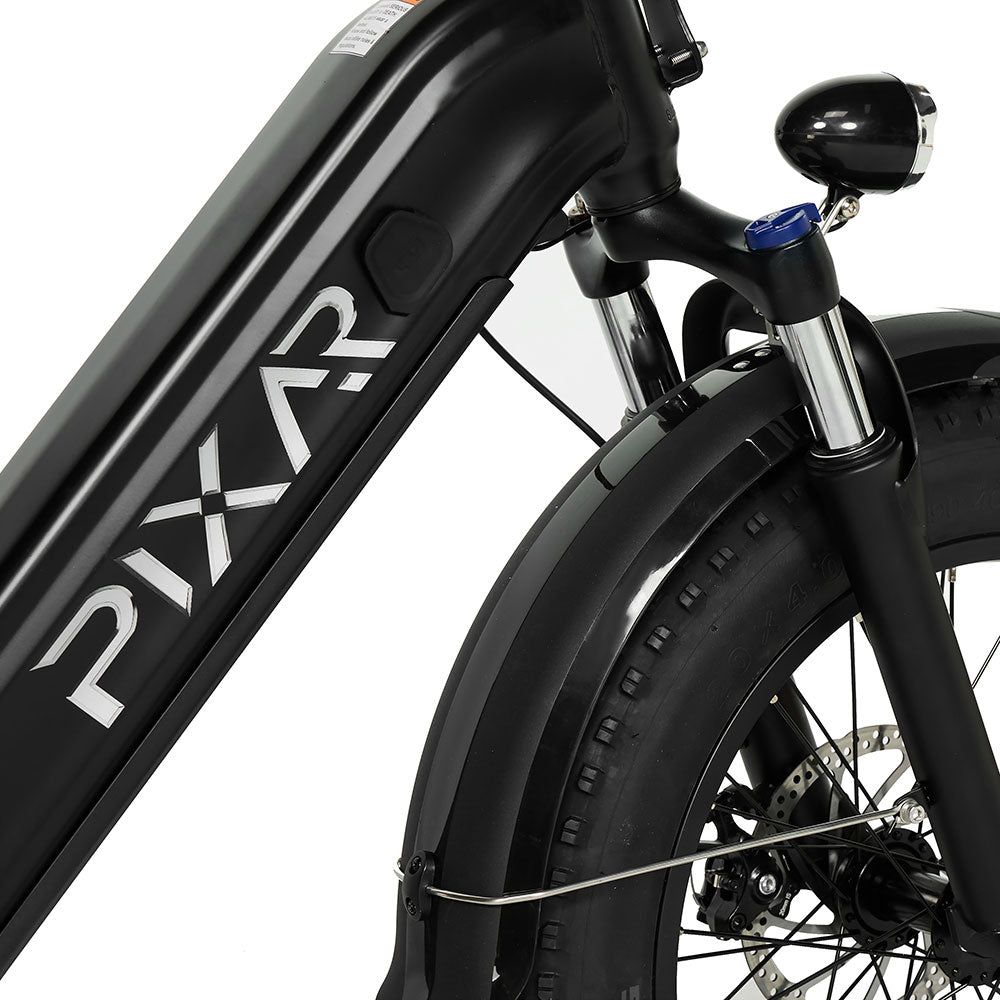

Helps absorb vibration across uneven riding surfaces.
Wide fat tires provide a broad contact patch.
Compact wheel format with an easy-access frame design.

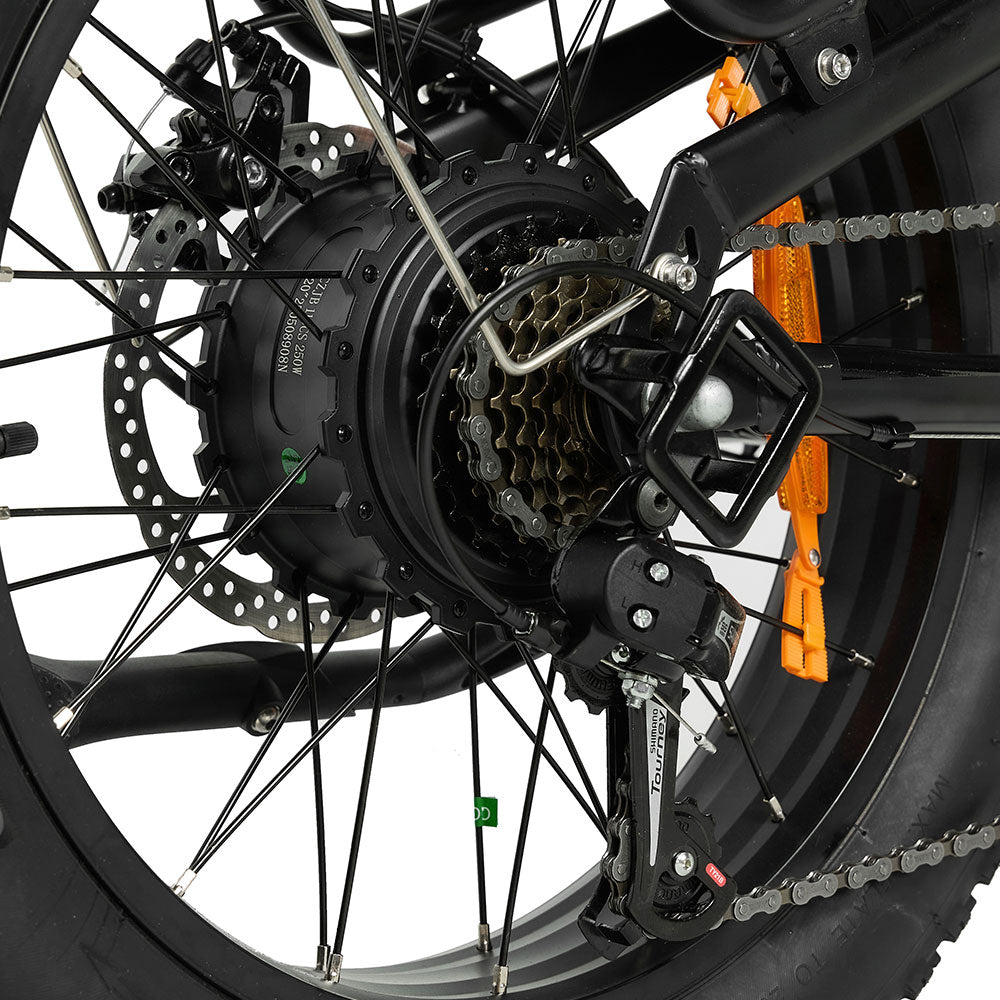

Electric system
Motor & Controls
A 48 V rear-hub system with a multifunction LCD, speed sensor and five selectable pedal-assist levels.
Motor output250 W continuous rated
Electrical system48 V
DisplayMultifunction LCD
Assistance5 PAS levels
SensorSpeed sensor
Road configuration25 km/h cut-off
Tap or swipe
Pedal Assist Levels
Choose PAS 1–5, use the arrow keys, or swipe horizontally.
Selected assistancePAS 1
Selected level1 of 5
Exact support, speed, power delivery and range at each level vary with controller programming, load, terrain and riding conditions.
Control & visibility
Components

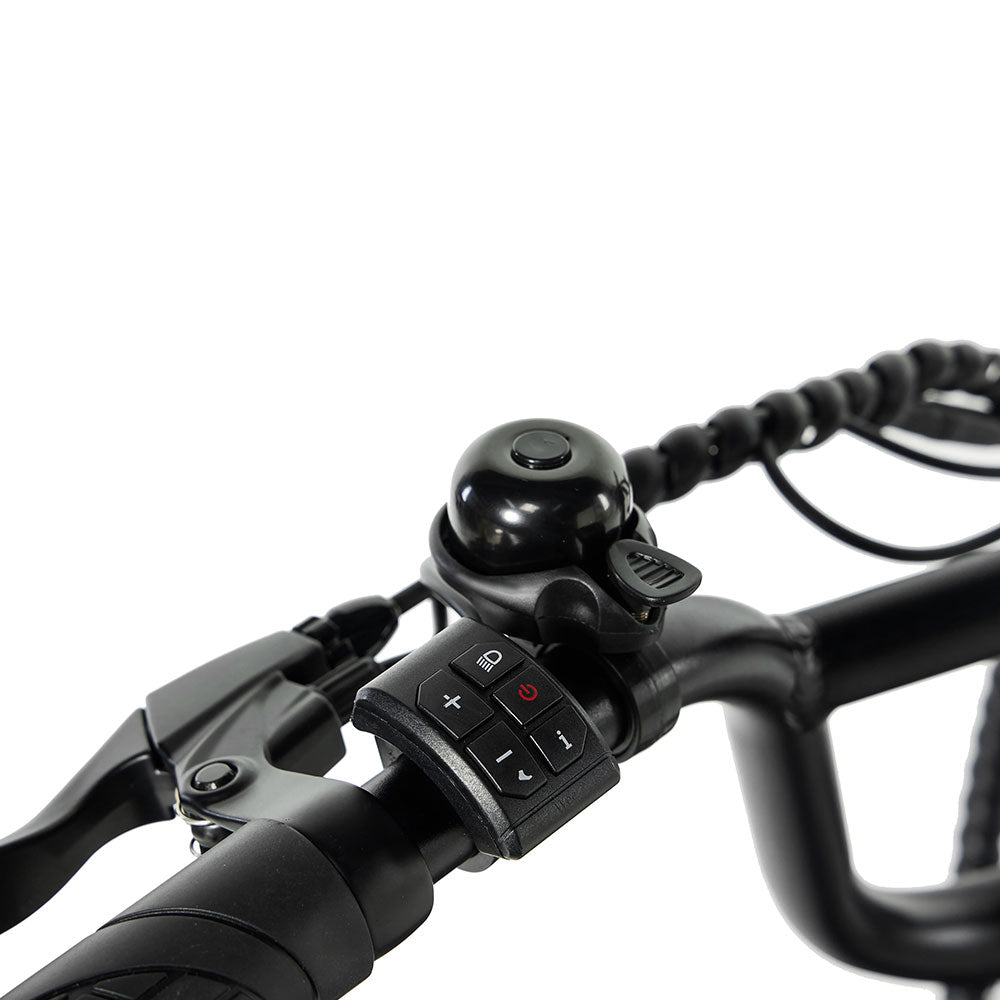

Select any image to enlarge the braking, lighting, drivetrain and display details.
Seven mechanical gears for adapting cadence to the route.

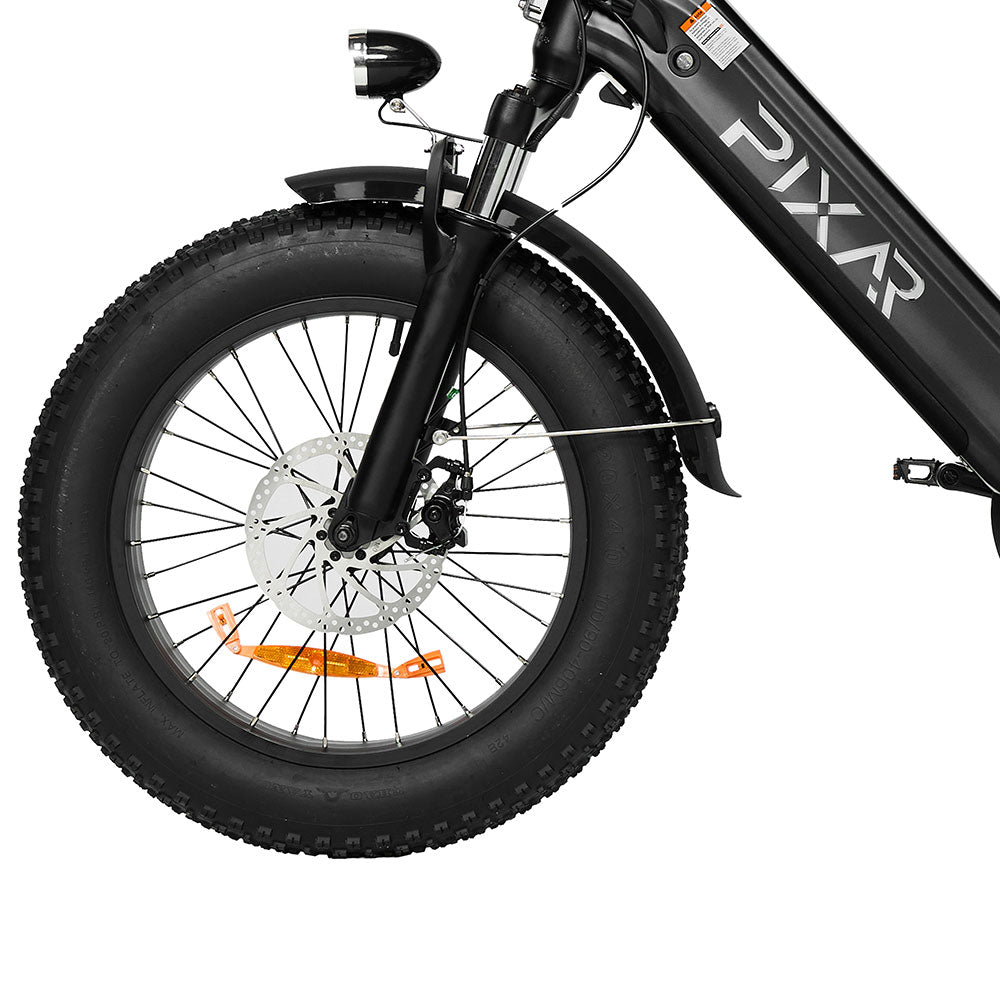

Front and rear disc braking for everyday control.

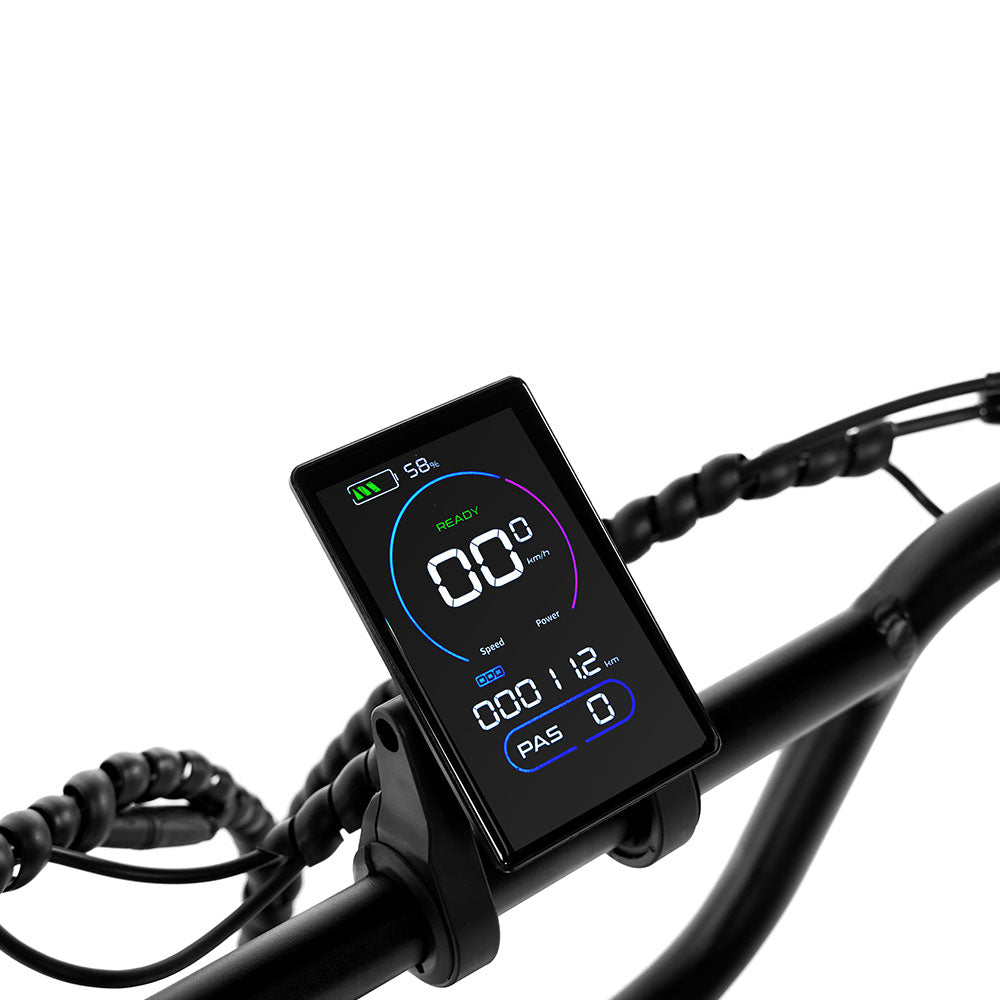

Shows core ride and assistance information.
Fitted visibility equipment for lower-light riding.
Weights, packing & options
Equipment
Important load, packing and accessory information for delivery and everyday use.

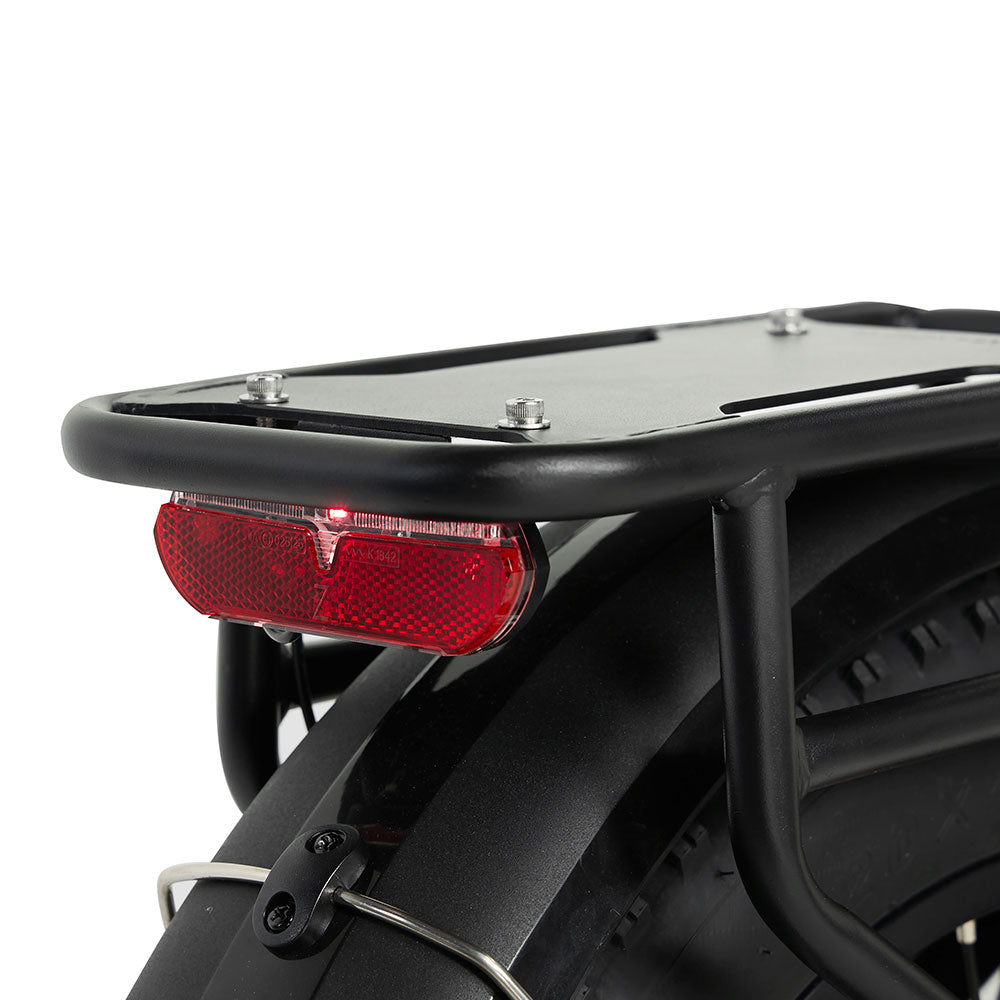

Front and rear lights
Visibility equipment is shown at both ends of the bicycle.
Front and rear fenders
Helps reduce spray from damp or dirty riding surfaces.
IP54 water resistance
Resists limited dust and water exposure; do not immerse or pressure-wash.

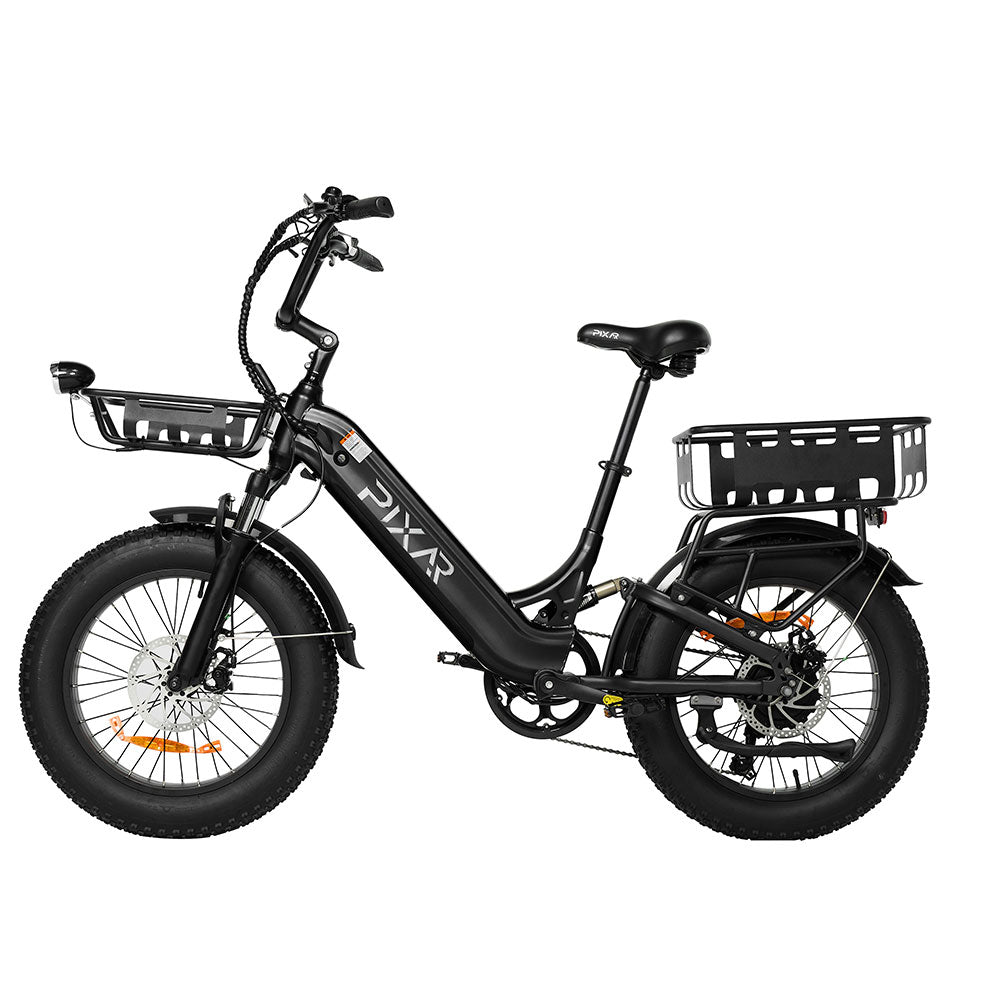

Front and rear baskets
Optional accessories are sold separately and may vary by availability.
