PIXAR Plus Specs

PIXAR Plus

PIXAR Plus
Specifications

Explore the step-through aluminum frame, two battery configurations, fat-tire riding platform, electrical system and everyday equipment.

6061 aluminum frame 20 × 3 in fat tires Two battery options

Available colours

Black & Gray

Both shown

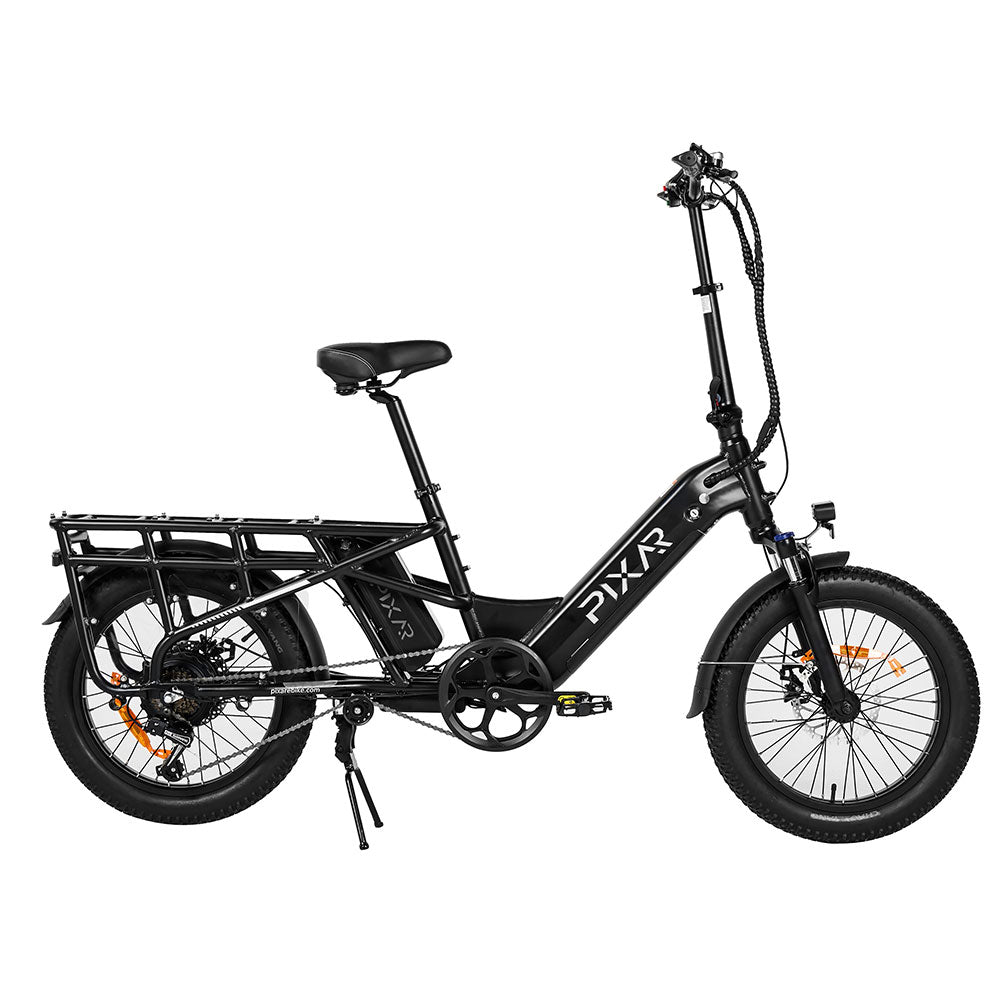

Black PIXAR Plus step-through fat tire electric bike
Black

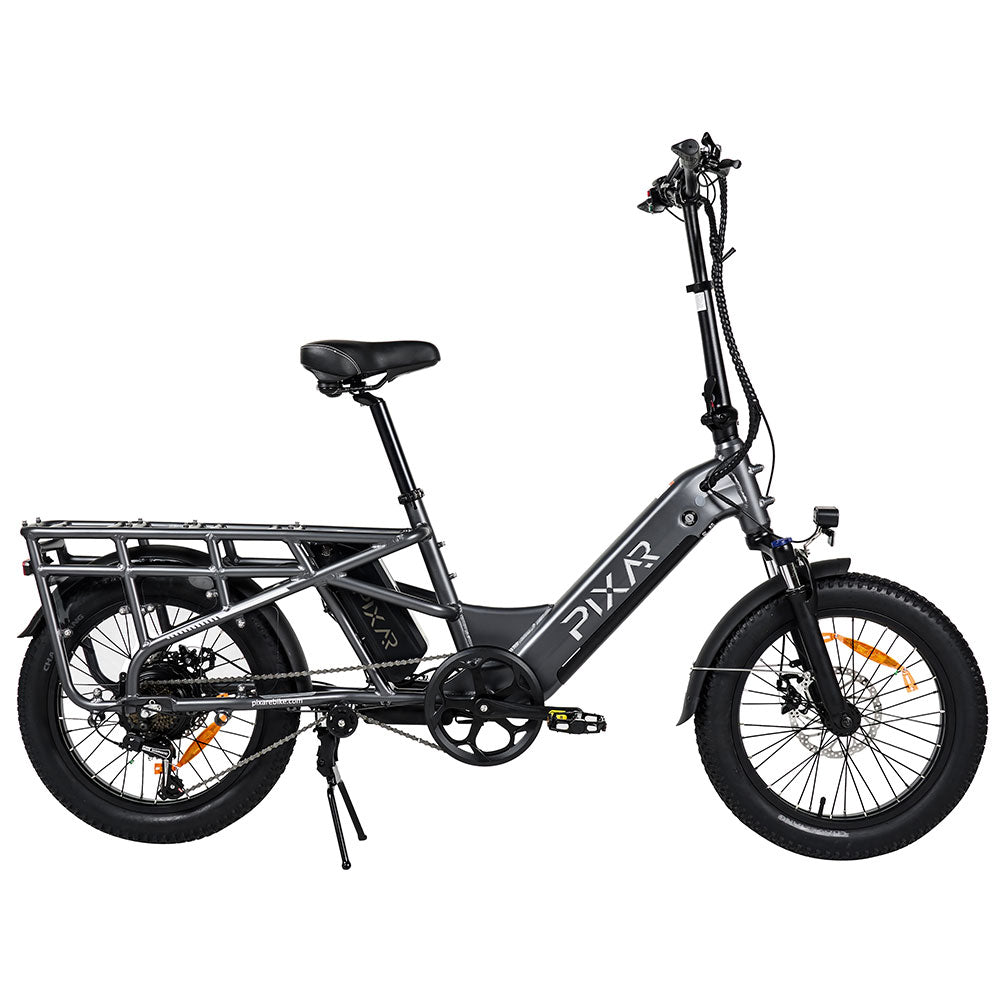

Gray PIXAR Plus step-through fat tire electric bike
Gray
250 WMotor output
35–45 / 70–90 km*Estimated range by battery
10.4 / 20 Ah48 V battery options
20 × 3 inChaoyang fat tires

At a glance

Technical Data

The latest consolidated customer-facing specifications for the PIXAR Plus.

ModelPIXAR Plus
Bike typeStep-through fat-tire utility e-bike
Frame6061 aluminum alloy
Wheel and tire20 × 3 in Chaoyang fat tire
Motor48 V system, 250 W rear-hub motor
Battery options48 V 10.4 Ah or 48 V 20 Ah
Estimated assisted range35–45 km (10.4 Ah) or 70–90 km (20 Ah)*
Assistance cut-off25 km/h
Pedal assist5 levels (PAS 1–5)
SensorSpeed sensor
DrivetrainShimano 7-speed
BrakesFront and rear mechanical disc brakes
Charger54.6 V / 2 A
Tire sidewallNo reflective sidewall stripe

Compare configurations

Battery & Range

Both configurations stay visible. Select a card to highlight its key figures.

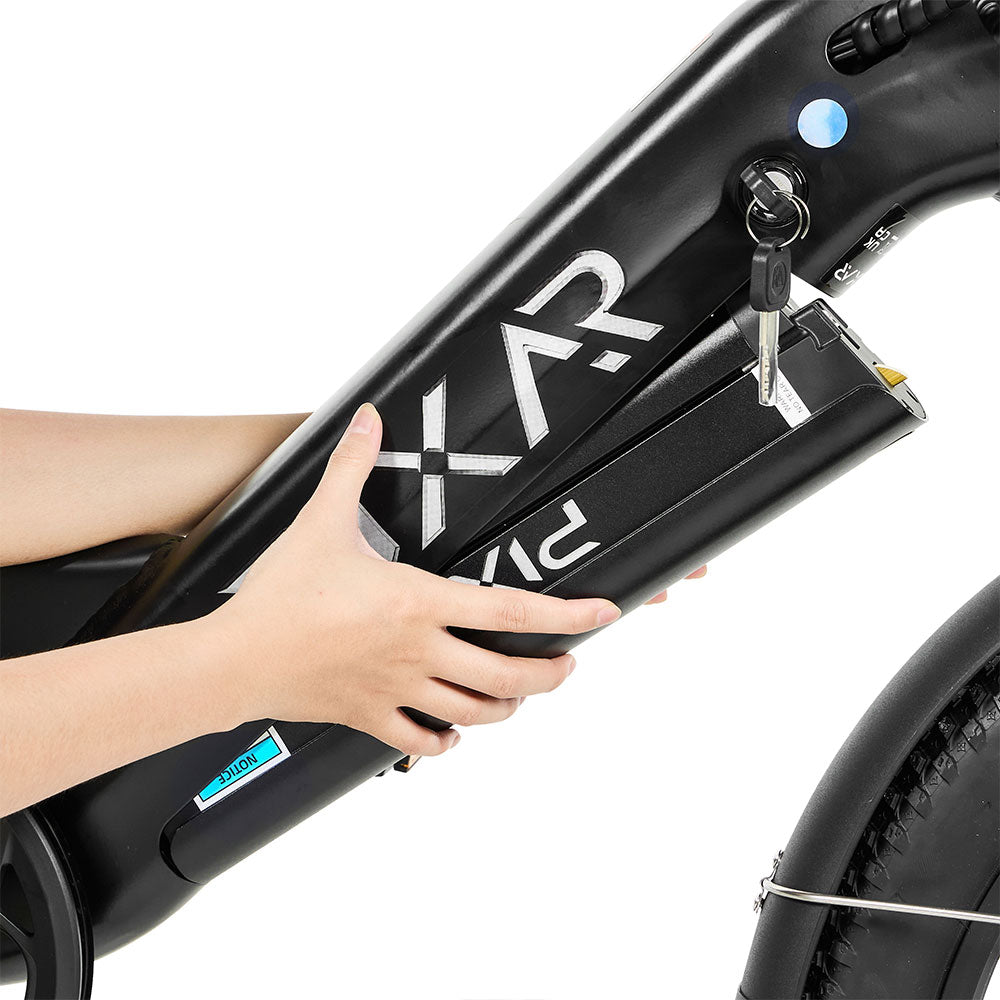

PIXAR Plus removable battery being lifted from the frame
Removable batteryLockable frame-mounted design
Selected comparison48 V 10.4 Ah
Calculated nominal energy499.2 Wh
Estimated assisted range35–45 km
ChargingApprox. 5.2 hours†

This comparison does not select a purchasable variant. Confirm the battery capacity shown in the product title or order confirmation before purchasing.

Easy-access platform

Frame & Ride

A compact aluminum step-through platform with wide tires, front suspension and everyday carrying equipment.

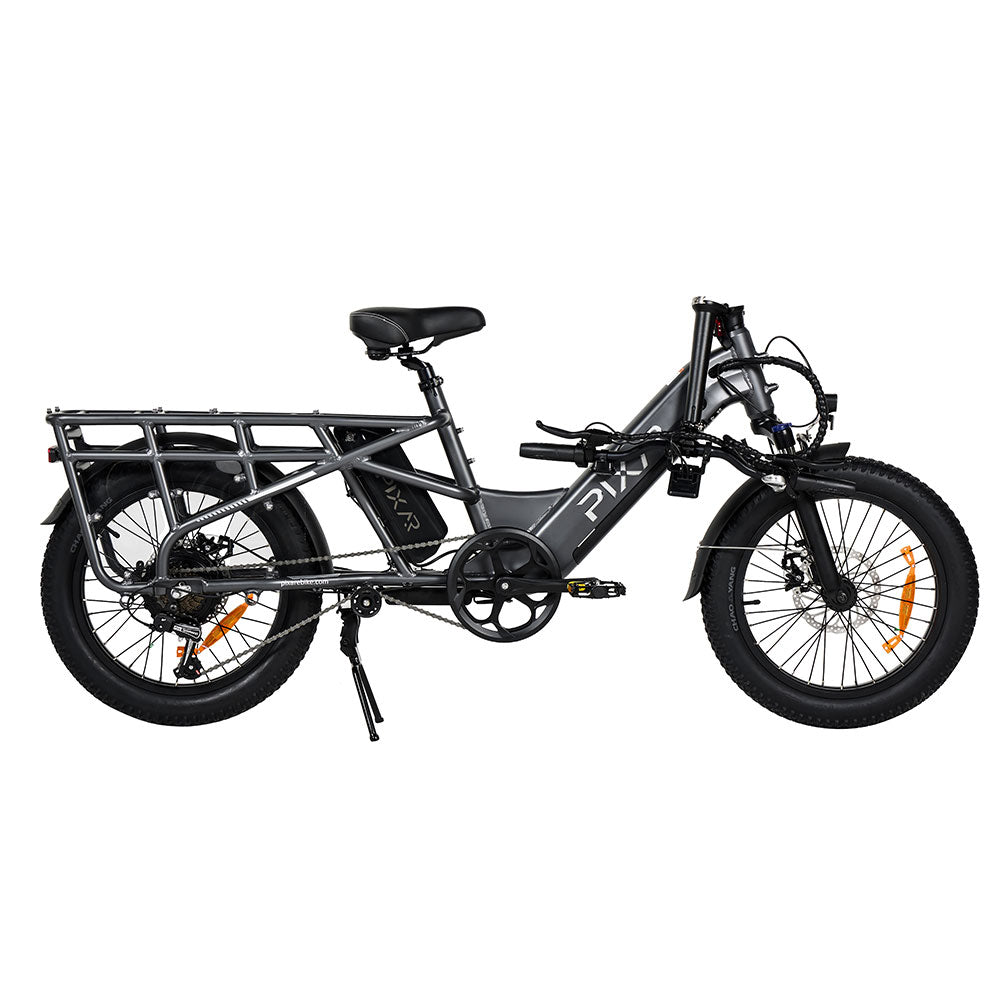

Gray PIXAR Plus step-through electric bike with upright handlebar
Step-through frame and upright handlebar
Frame material6061 aluminum alloy

Low-step access for easier mounting and dismounting.

Front suspensionSuspension fork

Helps absorb vibration across uneven urban surfaces.

Tire format20 × 3 in Chaoyang

Wide fat tires without a reflective sidewall stripe.

Practical equipmentRack, lights and fenders

Rear rack plus front and rear lights and fenders.

Electric system

Motor & Controls

A 48 V rear-hub system with a multifunction LCD, speed sensor and five selectable assistance levels.

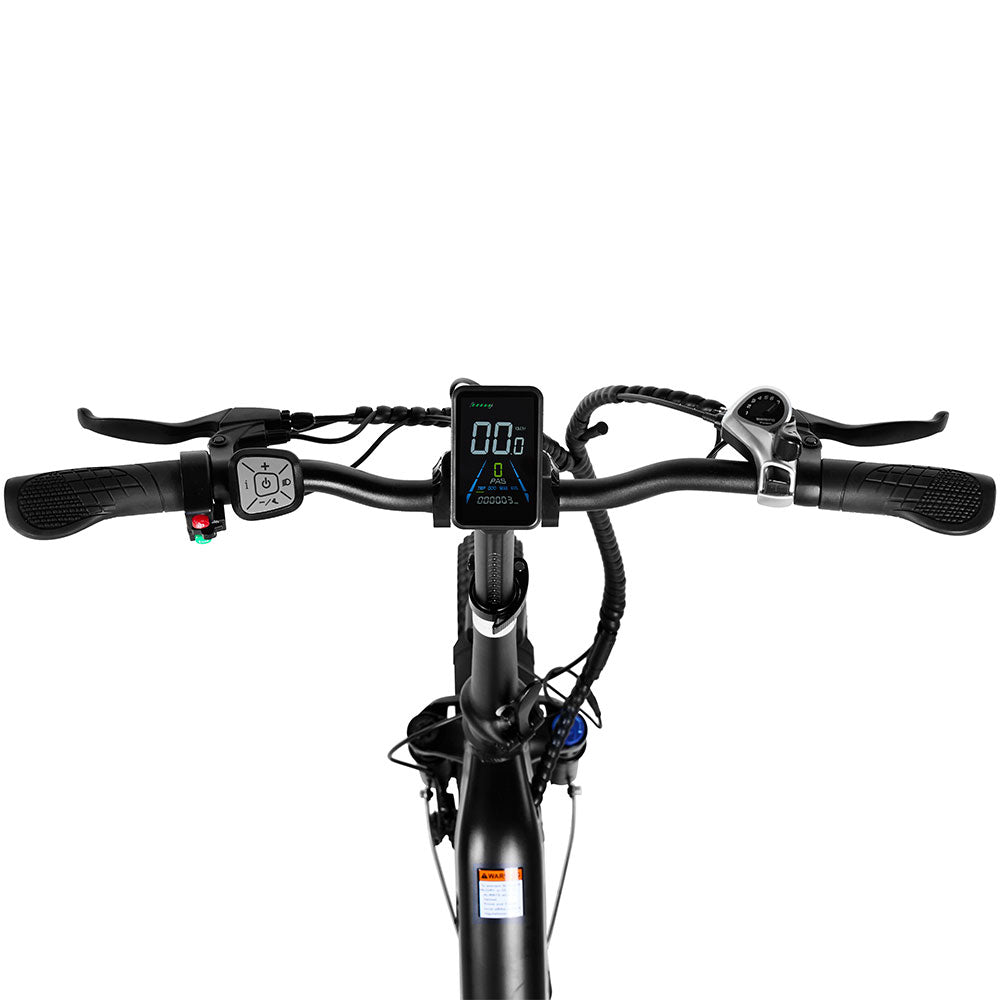

PIXAR Plus handlebar with LCD, controls, brake levers and Shimano shifter
Handlebar, LCD, brake controls and 7-speed shifter
Motor output250 W rear hub
Electrical system48 V
DisplayMultifunction LCD
Assistance5 PAS levels
SensorSpeed sensor
Road configuration25 km/h cut-off

Select or swipe

Pedal Assist Levels

Use the buttons, arrow keys or a horizontal swipe.

Active assistancePAS 1
SettingLevel 1

Lowest available support for steady riding and reduced battery use.

Exact speed, power delivery and range at each level vary with load, terrain and riding conditions.

Control & visibility

Components

Core braking, lighting, drivetrain and display equipment shown in the current product imagery.

DrivetrainShimano 7-speed

Seven mechanical gears for adapting cadence to the route.

BrakesMechanical disc brakes

Front and rear disc braking for everyday control.

DisplayMultifunction LCD

Shows core ride and assistance information.

LightingFront and rear lights

Integrated visibility equipment for lower-light riding.

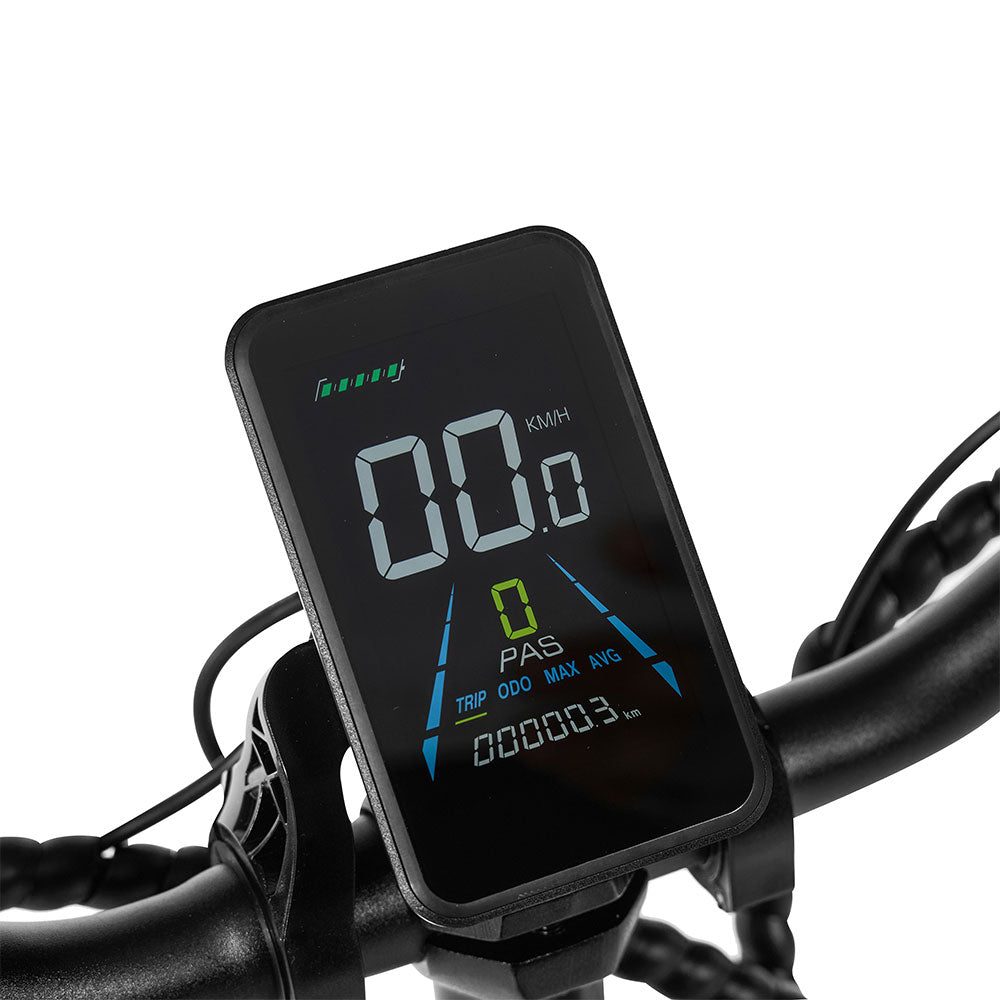

PIXAR Plus multifunction LCD display close-up
Multifunction LCD

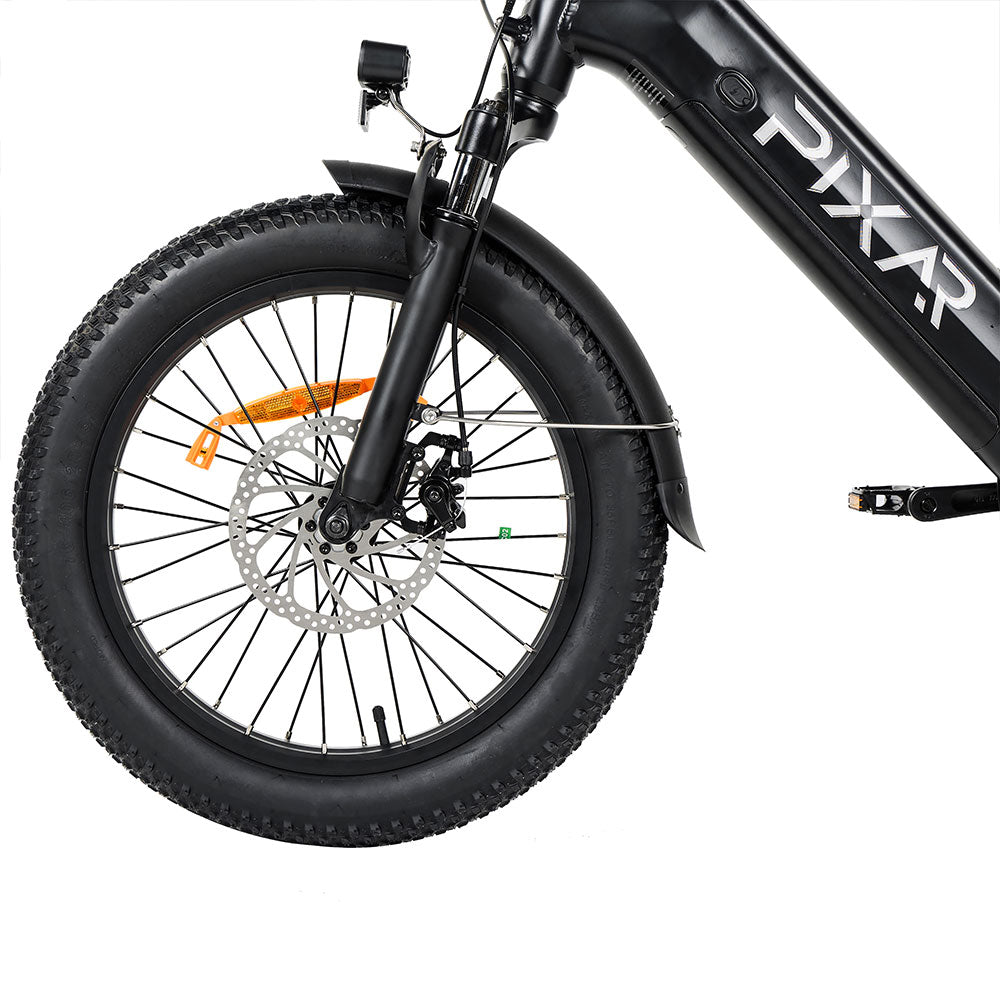

PIXAR Plus front wheel, fat tire, suspension fork and mechanical disc brake
Fat tire, suspension & front brake

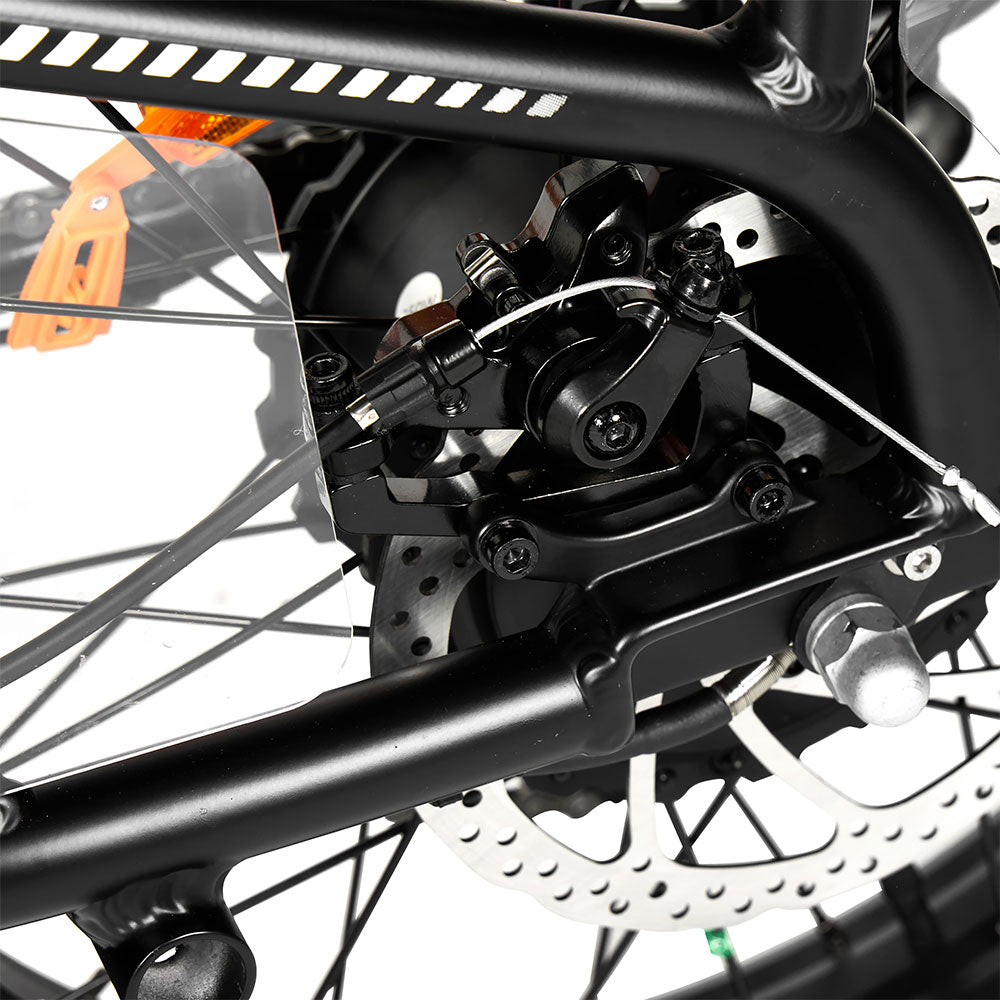

PIXAR Plus rear mechanical disc brake close-up
Rear mechanical disc brake

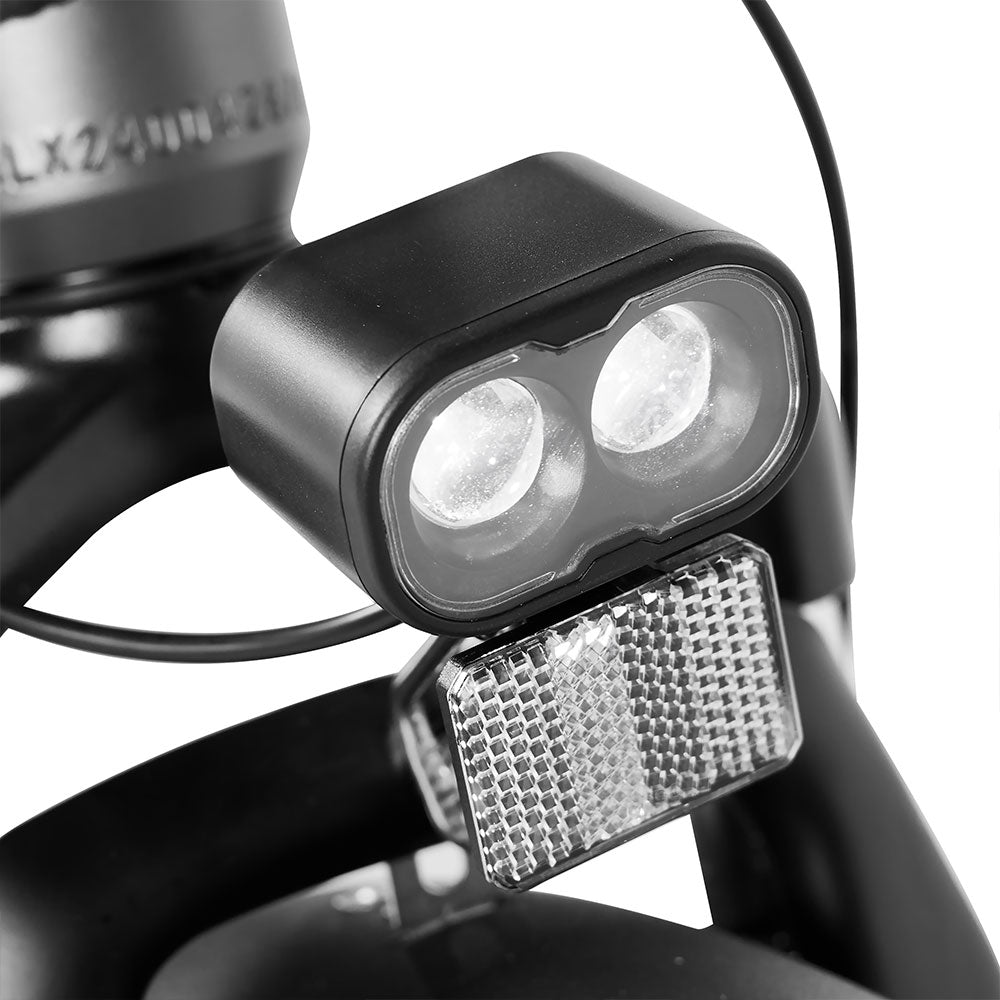

PIXAR Plus illuminated front light and reflector
Front light & reflector

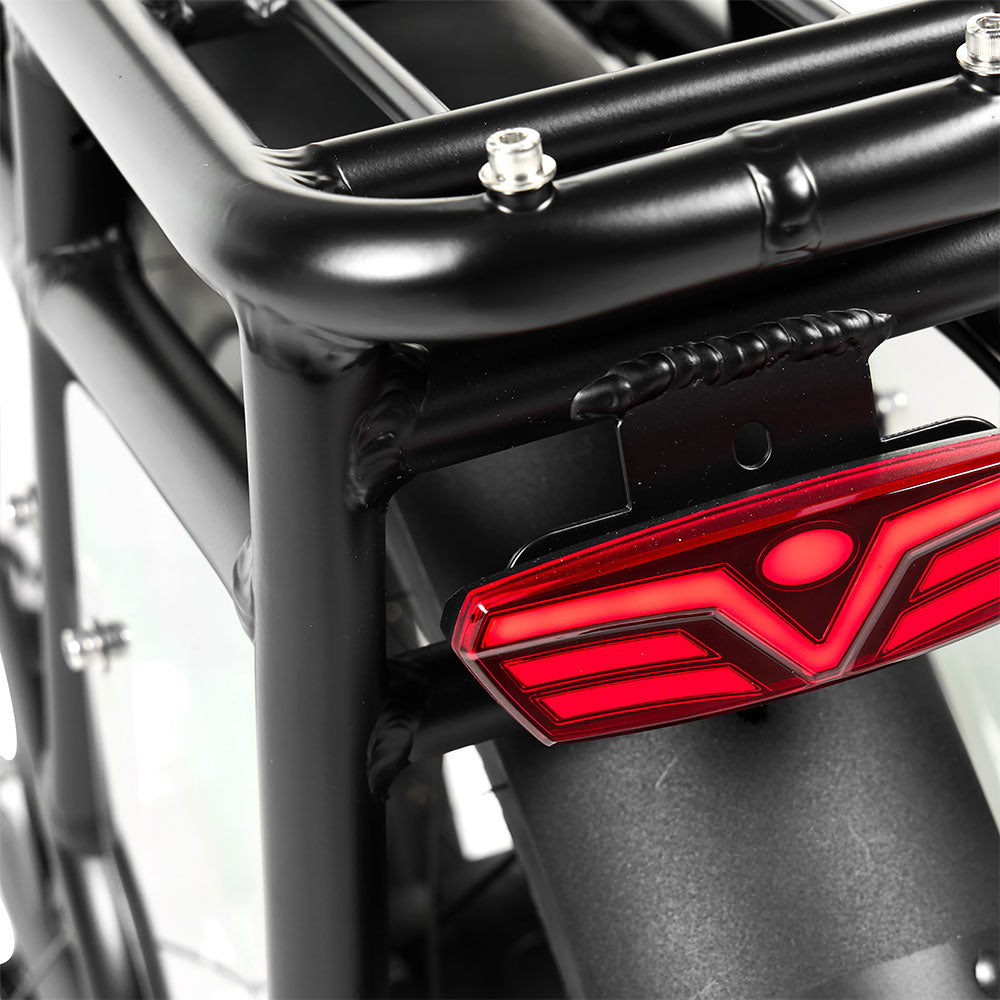

PIXAR Plus illuminated rear light under the rear rack
Rear light & rack

Fitted equipment & usage

Equipment

Practical equipment and important configuration notes customers should see before riding.

Fitted

Rear rack

A rear rack is fitted for compatible bags or baskets. Follow the rack's marked load limit.

Fitted

Front and rear fenders

Helps reduce spray from damp or dirty riding surfaces.

Fitted

Front suspension

The suspension fork helps absorb small bumps and road vibration.

Packed separately

Throttle accessory

Installation and permitted use depend on local laws and regulations.

*Estimated assisted ranges follow the latest supplied specification: 35–45 km with the 10.4 Ah battery and 70–90 km with the 20 Ah battery. Actual range varies with assistance level, rider and cargo weight, terrain, temperature, tire pressure, wind and riding style.

†The supplied 5.2-hour charging figure corresponds to 10.4 Ah ÷ 2 A before normal charging losses. A verified charging time for the 20 Ah battery was not supplied. Battery availability, charging time and product equipment can change; confirm the current configuration before ordering.
